Certified ESD & Conductive Floor Systems in Warren, MI

Why ESD Flooring Failures Are Never Just a Flooring Problem

When an electrostatic discharge event damages a circuit board at a Warren defense electronics lab, contaminates a pharmaceutical batch, or triggers a quality rejection on an automotive R&D test bench, the flooring is rarely the first suspect. But in a high percentage of ESD-related incidents, the floor — or more precisely, the failure of the floor system to reliably dissipate static charge to ground — is a contributing factor.

Standard epoxy floors conduct static unpredictably. Without a properly installed grounding grid and a coating system with verified, stable resistance values, the floor may perform adequately on the day of installation and drift out of specification within 18 months as conductive additives degrade, grounding connections loosen, or the topcoat accumulates surface contamination — a common cause of failing floor coatings.

For Warren’s defense contractors, electronics manufacturers along Mound Road and Van Dyke, and GM Technical Center’s sensitive testing environments, an ESD floor that cannot hold specification is not just a maintenance issue — it is a compliance failure, a product quality risk, and a potential safety event.

Understanding ESD Floor System Requirements

Resistance Classification

The first decision in ESD floor specification is the required resistance range:

Conductive flooring (Rg < 1×10^6 Ω) is used in environments where rapid charge dissipation is critical — explosive handling areas at Warren’s defense facilities, certain semiconductor processes, and environments where charge accumulation of any level is unacceptable. Several operations near the Detroit Arsenal require conductive-range flooring per their prime contractor specifications.

Static dissipative flooring (Rg 1×10^6 to 1×10^9 Ω) provides controlled, slower dissipation that prevents damaging discharge events while avoiding the rapid discharge that could itself damage sensitive components. This range is appropriate for most electronics manufacturing, PCB assembly, and automotive R&D testing environments — covering the majority of ESD flooring projects we install in the Warren and Macomb County area.

The appropriate range is determined by your ESD control program specification, the sensitivity of your devices (ESDS classification), and the guidance of your ESD coordinator. We work from your specification — we do not guess.

Why Grounding Grids Are Non-Negotiable

Many ESD floor failures we diagnose in Warren’s older industrial buildings trace directly to inadequate grounding rather than coating failure. An ESD coating without a properly designed and installed grounding grid is like a drain pipe without a sewer connection — the path to ground simply does not exist in a reliable, measurable way.

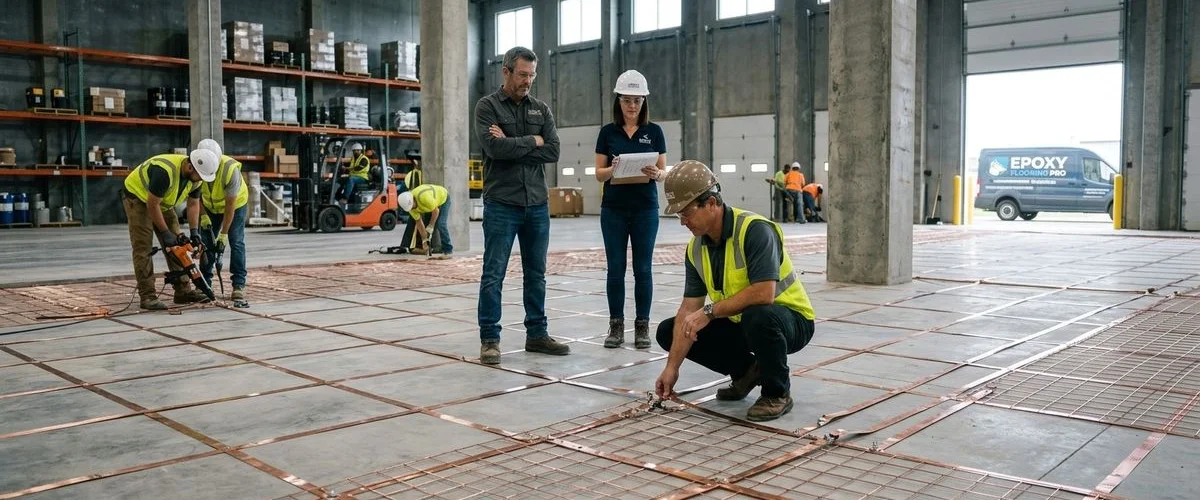

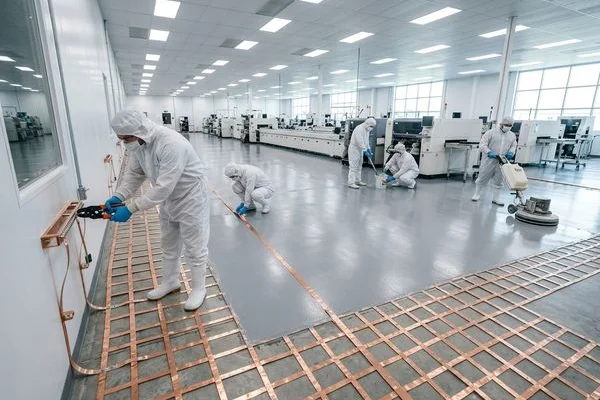

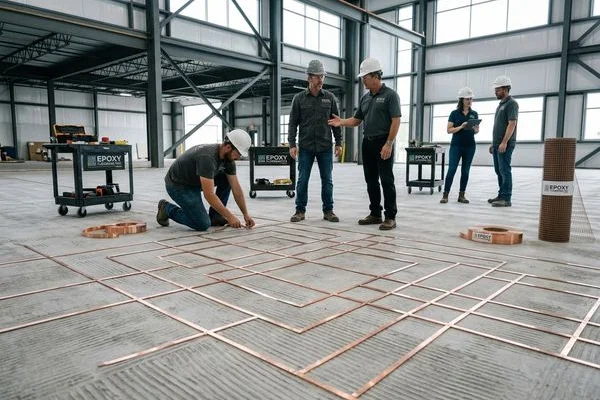

Our copper grounding grid installations use high-conductivity copper tape installed in a grid pattern beneath the coating system. The grid is connected to the facility electrical ground system, providing a true, measurable, reliable path to ground from every point on the floor surface. This is especially critical in Warren’s mid-century industrial buildings where original electrical grounding systems may have degraded over decades. The resistance from any location on the floor to ground is tested and documented before project closeout.

The ESD Floor System Stack

Conductive Primer

The primer layer serves two functions: it fills the concrete surface profile and provides the initial conductive pathway connecting the topcoat to the grounding grid below. We use two-component epoxy conductive primers that cure to a stable, verified resistance range and provide the adhesion foundation for the system above.

ESD Intermediate Coat

For thicker systems or environments requiring chemical resistance, an ESD-rated intermediate coat builds mil thickness while maintaining conductivity continuity throughout the coating stack. This layer is particularly important in Warren facilities with heavy chemical exposure — automotive R&D labs with solvent contact, or defense operations using aggressive cleaning agents.

Static-Dissipative Topcoat

The topcoat is the surface layer — it takes the wear, the cleaning chemistry, and the physical contact from feet, carts, and equipment. Our static-dissipative topcoats are formulated to maintain their resistance values across the expected service life, resist the cleaning agents used in your facility, and provide the surface hardness needed for your traffic loads.

Certified Testing and Documentation

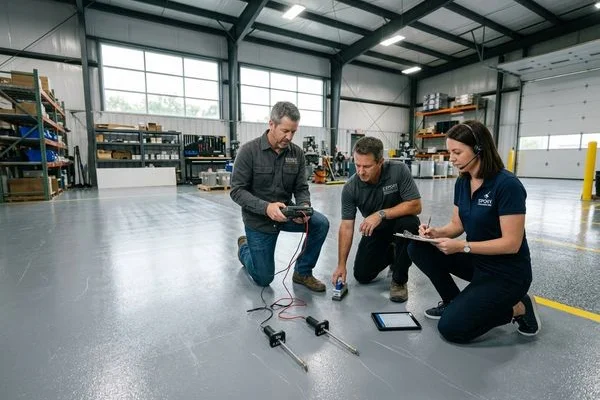

An ESD floor that cannot be verified is not a compliant ESD floor. Every installation we complete is tested per ANSI/ESD S7.1 using calibrated megohmmeter equipment. Testing is performed across a systematic grid pattern that covers the entire floor area, and all readings are documented in a formal test report that includes:

• Point-to-point resistance readings (Rp-p) at all test locations
• Resistance to groundable point readings (Rg) at all test locations
• Pass/fail determination against your specified resistance range
• Photographs of test setup and floor condition
• Project information, date, and tester credentials

This documentation integrates directly into your ANSI/ESD S20.20 ESD control program documentation set. For Warren defense contractors requiring MIL-STD-1686 compliance, we tailor our documentation to satisfy DoD audit requirements.

Warren Facilities We Serve

Our ESD flooring installations address the specific static-control requirements across Warren’s diverse industrial base:

Defense Electronics: The concentration of defense contractors near the Detroit Arsenal and along the Van Dyke corridor makes Warren a hub for MIL-SPEC electronics work. These facilities require the most rigorous ESD compliance — conductive or dissipative floors with documentation that satisfies prime contractor and DoD auditors.

Automotive R&D and Testing: GM Technical Center and Stellantis engineering operations in Warren house sensitive testing equipment, prototype electronics, and validation labs. ESD flooring in these facilities protects both the testing equipment and the components under evaluation.

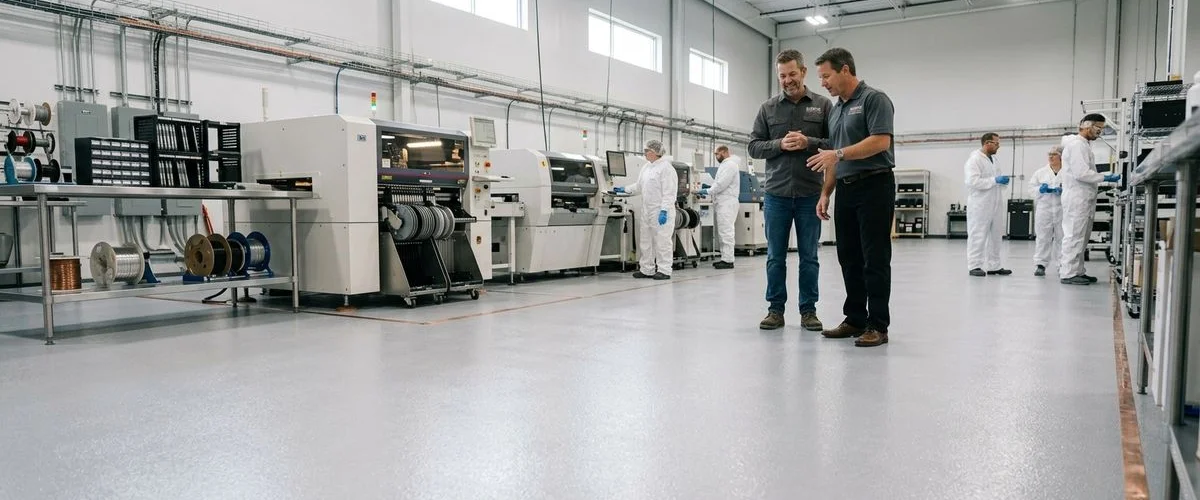

Electronics Manufacturing: Warren and the surrounding Macomb County corridor support PCB assembly, SMT lines, conformal coating, and test areas where ESDS components are handled daily. Static dissipative flooring in the 10^6 to 10^9 range covers most requirements.

Data Centers and Server Rooms: Warren’s growing data infrastructure includes equipment staging and installation areas where static discharge could damage rack-mounted hardware. Controlled dissipation protects equipment during handling and installation.

Pharmaceutical and Cleanroom: Environments where static charge can cause powder agglomeration, contamination events, or attract particles in cleanroom-classified areas require ESD flooring with low-outgassing, cleanroom-compatible formulations.

Contact Epoxy Flooring Pro for a static control flooring assessment at your Warren facility. We will specify the right system, install it correctly, and give you the documentation your ESD program requires.
