Fix Peeling, Blistering & Delaminating Floor Coatings in Warren, MI

When a New Floor Fails Within Weeks, Something Went Very Wrong

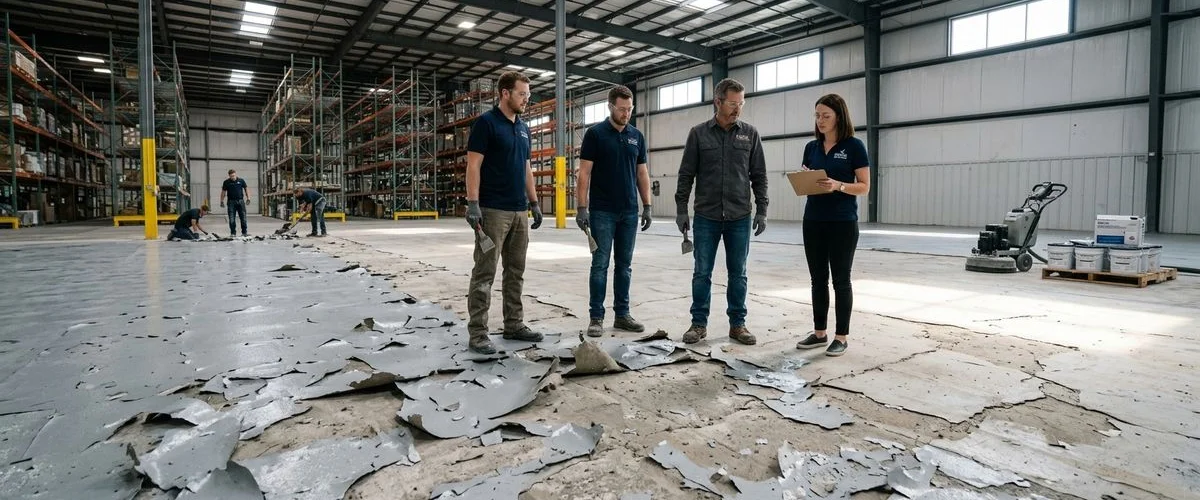

A properly specified and installed epoxy floor coating should last years — often decades — before requiring any remediation. When an epoxy floor starts peeling in a Warren automotive plant within months, blistering in a Mound Road warehouse within weeks, or delaminating in sheets in a food distribution facility within days of application, it is not bad luck. It is a preventable failure caused by a specific, identifiable mistake in specification, surface preparation, or application.

Epoxy Flooring Pro specializes in turning those failures around. We have investigated and corrected hundreds of failed floor coating installations across Warren, Macomb County, and southeast Michigan, and the pattern is consistent: the failure was avoidable, the cause is diagnosable, and the fix requires addressing the root cause — not just applying more coating over the problem.

The Four Most Common Causes of Floor Coating Failure in Warren

Understanding why floors fail is the prerequisite to fixing them correctly. In our investigations across Warren and Macomb County facilities, four failure modes account for the majority of premature coating failures:

1. Inadequate Surface Preparation

Surface preparation is the foundation of every coating installation. Inadequate preparation — whether from using the wrong method, insufficient equipment, or skipping steps to save time — produces a concrete surface that cannot sustain the adhesion values required for long-term performance.

Warren’s industrial facilities present unique preparation challenges. Automotive plants along Mound Road and Van Dyke have decades of oil contamination embedded in slabs. Older manufacturing buildings from the 1950s and 1960s have concrete that has been coated, abraded, and contaminated repeatedly. These slabs require aggressive preparation — shot blasting to CSP 3–5 at minimum — that many coating contractors underestimate.

Insufficient surface profile (CSP): Every coating manufacturer specifies a required concrete surface profile. Shot blasting achieves CSP 3–5. Diamond grinding achieves CSP 2–3. Simple acid etching achieves at best CSP 1–2. Using acid etching for a system that requires shot blasting produces adhesion values far below specification — and eventual delamination is the result.

Surface contamination: Oil, grease, curing compounds, sealers, and even microscopic concrete dust can prevent proper adhesion. Warren’s automotive and machining facilities often have floors with chemical damage that requires particularly thorough decontamination. Contaminated surfaces look clean visually but fail chemically.

Inadequate crack repair: Cracks that are surface-filled rather than properly routed and sealed transmit movement to the coating layer, creating stress concentrations that initiate delamination. Warren’s freeze-thaw cycling makes this worse as seasonal temperature changes drive crack movement.

2. Moisture Vapor Emission

Moisture vapor is the single most common cause of coating delamination in Warren — and the most frequently missed problem in pre-installation inspection. Warren sits on clay-rich Macomb County soil with a relatively high water table. Concrete slabs on grade transmit water vapor from the ground below and from within the slab itself, driven by concentration gradients, temperature differences, and hydrostatic pressure.

When moisture vapor pressure at the concrete surface exceeds the adhesive strength of the coating bond, the coating delaminates. This typically begins as small circular blisters — often appearing within weeks of installation — that expand, connect, and eventually produce sheets of delaminating coating.

ASTM F1869 (calcium chloride test) and ASTM F2170 (in-situ relative humidity probe) are the standard test methods for measuring moisture vapor emission rate. Both have manufacturer-specified threshold limits that must not be exceeded before coating application. We test for both on every Warren project — because in this region, moisture vapor problems are the rule rather than the exception.

3. Application Outside Product Parameters

Two-component epoxy systems have defined working conditions: minimum and maximum application temperature, maximum relative humidity, minimum dew point differential, and open time limits. Application outside these parameters — particularly during Warren’s cold winters when unheated warehouse slabs drop below minimum application temperatures, or during humid summer months when dew point conditions are marginal — produces partially cured, under-crosslinked coating layers with adhesion values far below specification.

The failure often appears weeks later as the coating continues to slowly cure in place, changing dimension and stressing adhesion bonds that were already marginal at application.

4. Product Incompatibility and Recoat Window Violations

Coating systems are formulated as stacks — primer, intermediate coat, topcoat — where each layer is chemically compatible with the layer above and below. Mixing products from different manufacturers, applying a recoat after the specified recoat window has closed, or applying a new system over an existing coating that was not properly prepared creates adhesion failures that are often invisible at application but appear within weeks as the system ages.

Our Remediation Process: Fix the Problem, Not the Symptom

Step One: Investigation Before Action

We do not arrive at a failed Warren facility floor and immediately begin applying materials. Investigation comes first. Our assessment includes adhesion pull testing to measure what bond strength remains, ASTM F1869 and ASTM F2170 moisture vapor tests, pH testing, and a thorough review of installation records if available.

The investigation findings are documented in a written failure report that identifies the specific failure mode, the evidence supporting that conclusion, and the recommended remediation approach.

Step Two: Complete Removal of Failed Material

Every square foot of failed coating material is removed before any new material is applied. Shot blasting removes coating down to bare concrete in a single pass on most applications. Diamond grinding removes stubborn adhesive residues and corrects surface profile. The concrete surface is then inspected, tested, and cleared before remediation begins.

Step Three: Substrate Correction

Correcting the concrete substrate is often the most important part of remediation. If moisture vapor was the failure mode — common in Warren’s slab-on-grade construction — a moisture vapor mitigation system is installed before the new coating. If CSP was inadequate, shot blasting corrects the profile. If contamination was present from decades of automotive manufacturing use, chemical cleaning and testing confirm its removal.

Step Four: Warranted Replacement System

The replacement system is specified for the corrected substrate conditions — not the same system that failed, but a system engineered for the actual conditions of your specific concrete slab. Every replacement installation we perform is documented and warranted.

If your Warren floor coating failed prematurely — regardless of who installed it — contact Epoxy Flooring Pro. We will tell you exactly what went wrong and fix it correctly.
